Wiring the two kinds of switches
Debugging switch issues
Using auto-reversers
There are two kinds of switches:

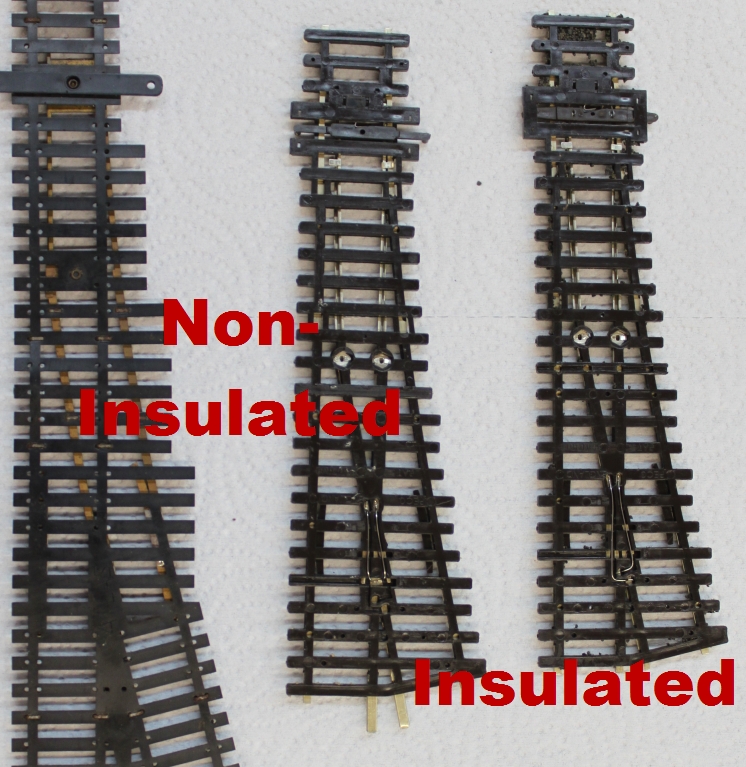

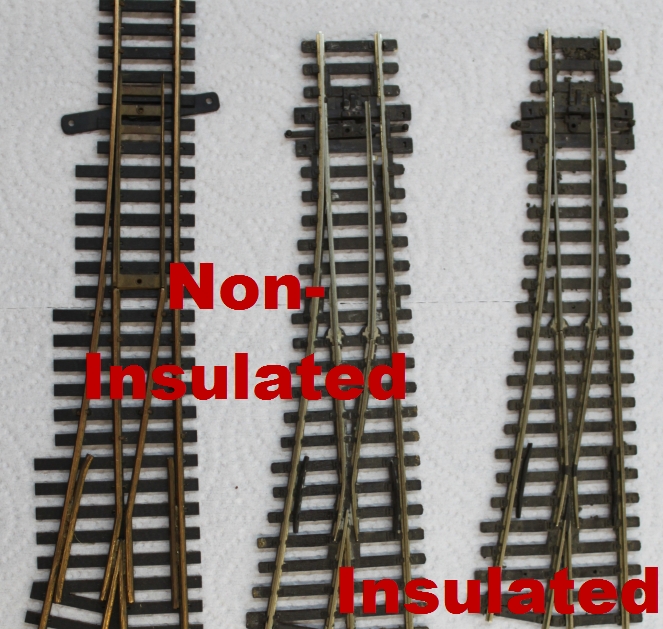

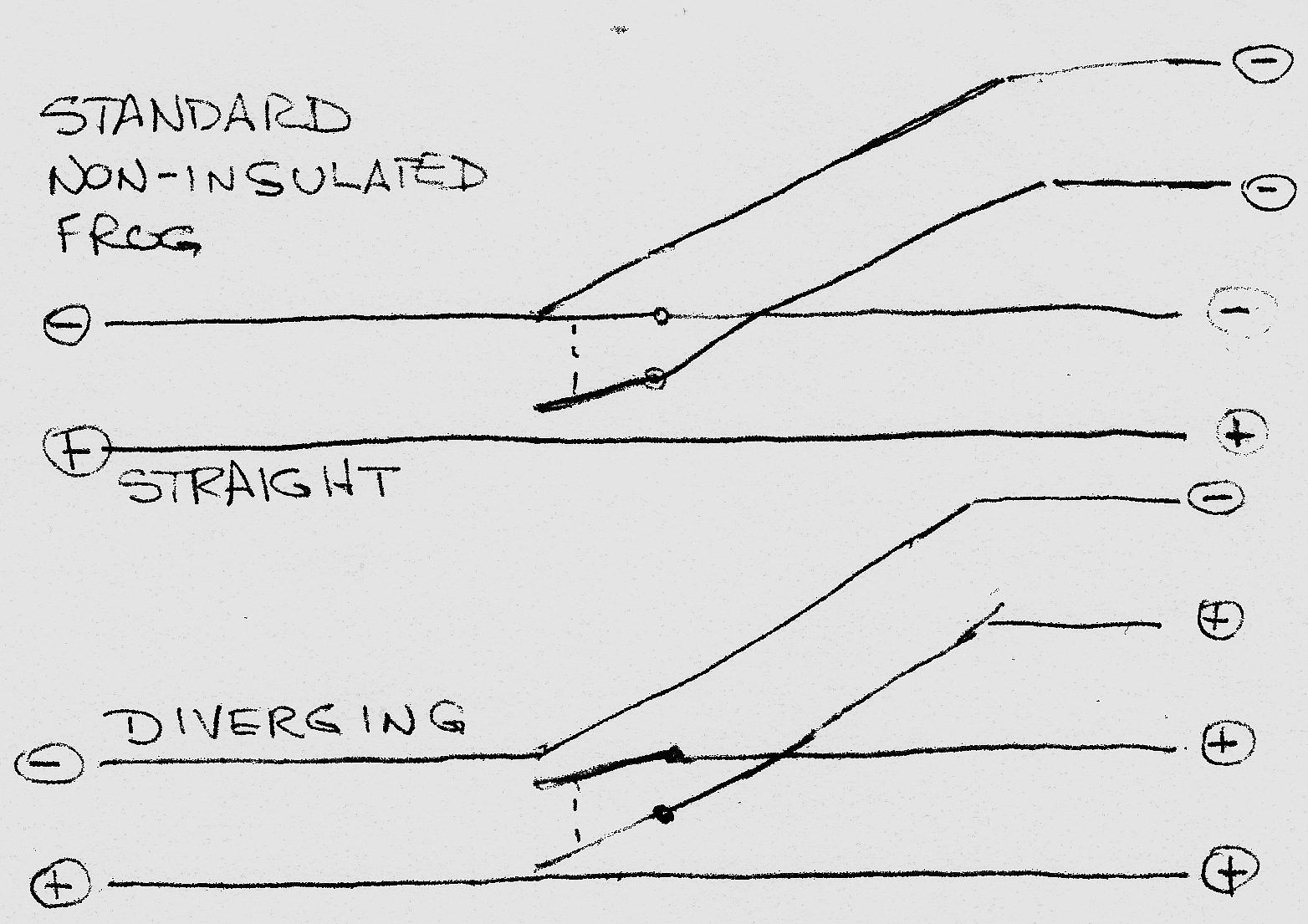

Non-Insulated Frogs (Peco Electrofrog)

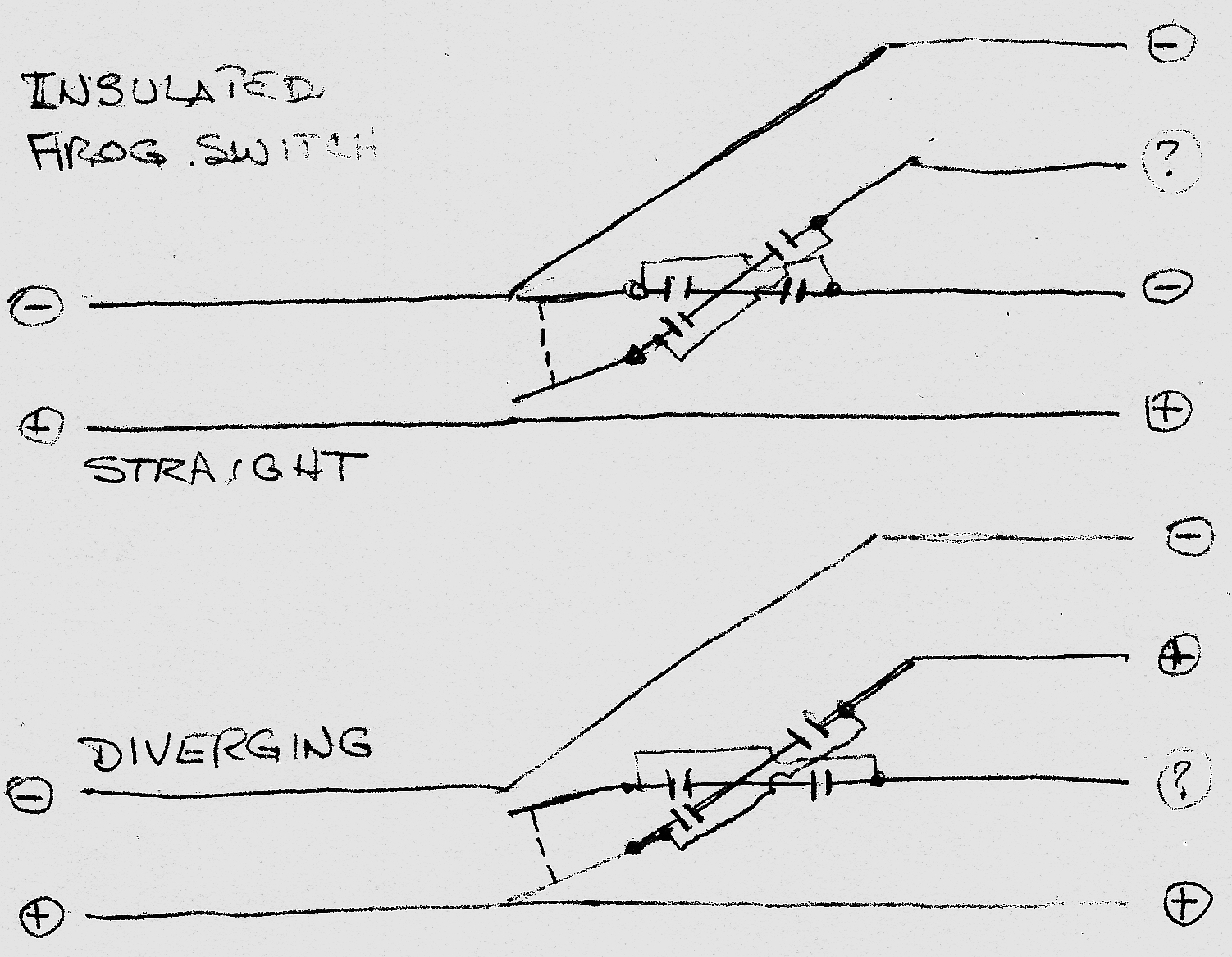

Insulated Frogs (Peco Insulfrog)
Some wiring diagrams for Electrofrogs
- Simple passing tack

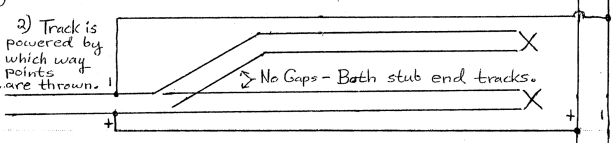

- Multiple stub tracks

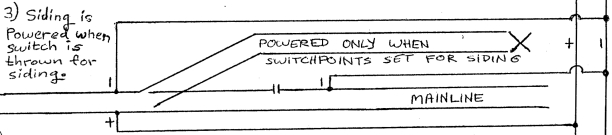

- Stub track with power routing

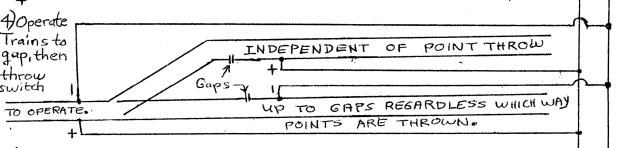

- Cab controlled stub track

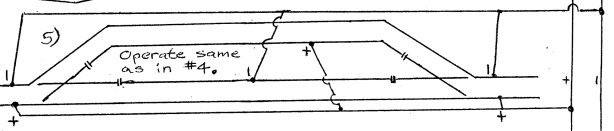

- Cab controlled passing siding

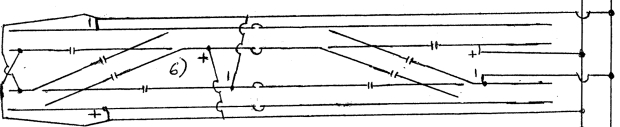

- Cab controlled dual mainline crossovers

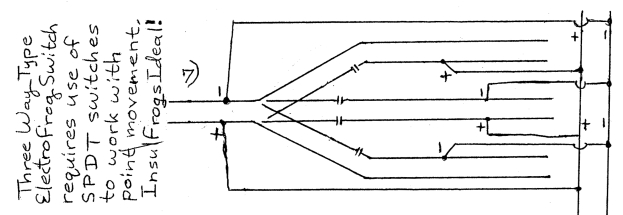

- Cab controlled three way switch
